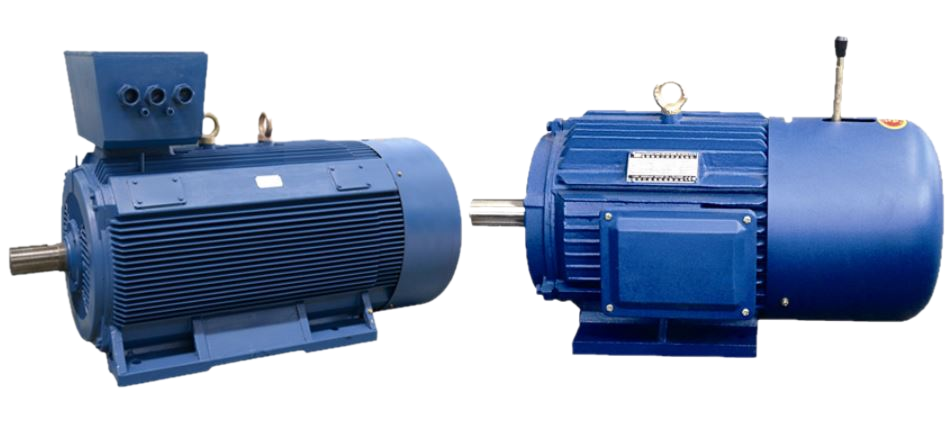

YE2, YE3 — низковольтные электродвигатели
| Модель YE2 (IE2, IP55, GB3, IC411) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Модель | Мощность, кВт | Ток, А | Частота, об/мин | КПД, % | P.F. | Момент, Н⋅м | Цена розн., USD с НДС | |||
| 2-х полюсные. 3000 об/мин - 50 Гц | ||||||||||
| YE2-80M1-2 | 0,75 | 1.8 | 2855 | 77.4 | 0.82 | 2.4 | 2.3 | 2.3 | 6.8 | 166,12 |
| YE2-80M2-2 | 1,1 | 2.5 | 2860 | 79.6 | 0.83 | 3.5 | 2.3 | 2.3 | 7.1 | 180,41 |
| YE2-90S-2 | 1,5 | 3.3 | 2890 | 81.3 | 0.84 | 4.8 | 2.3 | 2.3 | 7.3 | 213,48 |
| YE2-90L-2 | 2,2 | 4.7 | 2890 | 83.2 | 0.85 | 7.0 | 2.3 | 2.3 | 7.6 | 241,56 |
| YE2-100L-2 | 3 | 6.2 | 2880 | 84.6 | 0.87 | 9.6 | 2.2 | 2.3 | 7.8 | 326,23 |
| YE2-112M-2 | 4 | 8.0 | 2910 | 85.8 | 0.88 | 12.7 | 2.2 | 2.3 | 8.1 | 404,41 |
| YE2-132S1-2 | 5,5 | 10.9 | 2905 | 87.0 | 0.88 | 17.5 | 2.2 | 2.3 | 8.2 | 544,98 |
| YE2-132S2-2 | 7,5 | 14.5 | 2915 | 88.1 | 0.89 | 23.9 | 2.2 | 2.3 | 7.8 | 612,63 |
| YE2-160M1-2 | 11 | 21.0 | 2935 | 89.4 | 0.89 | 35.0 | 2.2 | 2.3 | 7.9 | 943,63 |
| YE2-160M2-2 | 15 | 28.4 | 2935 | 90.3 | 0.89 | 47.8 | 2.2 | 2.3 | 7.9 | 1 083,02 |
| YE2-160L-2 | 18,5 | 34.7 | 2935 | 90.9 | 0.89 | 58.9 | 2.2 | 2.3 | 8.0 | 1 229,71 |
| YE2-180M-2 | 22 | 41.1 | 2950 | 91.3 | 0.89 | 70.0 | 2.2 | 2.3 | 8.1 | 1 561,72 |
| YE2-200L1-2 | 30 | 55.7 | 2960 | 92.0 | 0.89 | 95.5 | 2.0 | 2.3 | 7.5 | 2 085,77 |
| YE2-200L2-2 | 37 | 68.3 | 2960 | 92.5 | 0.89 | 118 | 2.0 | 2.3 | 7.5 | 2 329,52 |
| YE2-225M-2 | 45 | 82.7 | 2965 | 92.9 | 0.89 | 143 | 2.2 | 2.3 | 7.5 | 2 991,45 |
| YE2-250M-2 | 55 | 100.7 | 2970 | 93.2 | 0.89 | 175 | 2.2 | 2.3 | 7.6 | 3 546,49 |
| YE2-280S-2 | 75 | 136.5 | 2975 | 93.8 | 0.89 | 239 | 1.8 | 2.3 | 6.9 | 4 386,13 |
| YE2-280M-2 | 90 | 163.3 | 2975 | 94.1 | 0.89 | 287 | 1.8 | 2.3 | 6.9 | 4 937,12 |
| YE2-315S-2 | 110 | 197 | 2975 | 94.3 | 0.90 | 350 | 1.8 | 2.2 | 7.0 | 8 572,31 |
| YE2-315M-2 | 132 | 236 | 2975 | 94.6 | 0.90 | 420 | 1.8 | 2.2 | 7.0 | 9 212,00 |
| YE2-315L1-2 | 160 | 282 | 2975 | 94.8 | 0.91 | 509 | 1.8 | 2.2 | 7.1 | 10 370,36 |
| YE2-315L-2 | 185 | 325 | 2975 | 95.0 | 0.91 | 589 | 1.8 | 2.2 | 7.1 | 12 103,50 |
| YE2-315L2-2 | 200 | 352 | 2975 | 95.0 | 0.91 | 637 | 1.8 | 2.2 | 7.1 | 11 647,59 |
| YE2-355M1-2 | 220 | 387 | 2980 | 95.0 | 0.91 | 700 | 1.6 | 2.2 | 7.1 | 16 952,57 |
| YE2-355M2-2 | 250 | 439 | 2980 | 95.0 | 0.91 | 796 | 1.6 | 2.2 | 7.1 | 18 781,38 |
| YE2-355L1-2 | 280 | 492 | 2980 | 95.0 | 0.91 | 891 | 1.6 | 2.2 | 7.1 | 19 180,25 |
| YE2-355L2-2 | 315 | 554 | 2980 | 95.0 | 0.91 | 1003 | 1.6 | 2.2 | 7.2 | 20 908,01 |
| YE2-3551-2 | 355 | 624 | 2980 | 95.0 | 0.91 | 1130 | 1.6 | 2.2 | 7.2 | по запросу |
| YE2-3552-2 | 375 | 659 | 2980 | 95.0 | 0.91 | 1194 | 1.6 | 2.2 | 7.2 | |
| 4-х полюсные. 1500 об/мин - 50 Гц | ||||||||||
| YE2-80M1-4 | 0,55 | 1.5 | 1415 | 77.1 | 0.75 | 3.5 | 2.3 | 2.3 | 6.4 | 158,61 |
| YE2-80M2-4 | 0,75 | 1.9 | 1415 | 79.6 | 0.76 | 4.8 | 2.3 | 2.3 | 6.4 | 172,14 |
| YE2-90S-4 | 1,1 | 2.7 | 1425 | 81.4 | 0.77 | 7.0 | 2.3 | 2.3 | 6.6 | 206,72 |
| YE2-90L-4 | 1,5 | 3.5 | 1425 | 82.8 | 0.78 | 9.6 | 2.3 | 2.3 | 6.7 | 233,54 |
| YE2-100L1-4 | 2,2 | 5.0 | 1440 | 84.3 | 0.80 | 14.0 | 2.3 | 2.3 | 7.3 | 307,44 |
| YE2-100L2-4 | 3 | 6.6 | 1440 | 85.5 | 0.81 | 19.1 | 2.3 | 2.3 | 7.5 | 343,74 |
| YE2-112M-4 | 4 | 8.7 | 1445 | 86.6 | 0.81 | 25.5 | 2.3 | 2.3 | 7.5 | 422,55 |
| YE2-132S-4 | 5,5 | 11.6 | 1455 | 87.7 | 0.82 | 35.0 | 2.0 | 2.3 | 7.5 | 571,29 |
| YE2-132M-4 | 7,5 | 15.5 | 1455 | 88.7 | 0.83 | 47.8 | 2.0 | 2.3 | 7.3 | 656,82 |
| YE2-160M-4 | 11 | 22.4 | 1465 | 89.8 | 0.83 | 70.0 | 2.0 | 2.3 | 7.4 | 996,91 |
| YE2-160L-4 | 15 | 30.0 | 1465 | 90.6 | 0.84 | 95.5 | 2.0 | 2.3 | 7.5 | 1 171,33 |
| YE2-180M-4 | 18,5 | 36.3 | 1470 | 91.2 | 0.85 | 118 | 2.0 | 2.3 | 7.6 | 1 479,30 |
| YE2-180L-4 | 22 | 42.9 | 1470 | 91.6 | 0.85 | 140 | 2.1 | 2.3 | 7.7 | 1 620,15 |
| YE2-200L-4 | 30 | 58.1 | 1475 | 92.3 | 0.85 | 191 | 2.1 | 2.3 | 7.1 | 2 163,85 |
| YE2-225S-4 | 37 | 70.5 | 1480 | 92.7 | 0.86 | 236 | 2.1 | 2.3 | 7.3 | 2 658,66 |
| YE2-225M-4 | 45 | 85.4 | 1480 | 93.1 | 0.86 | 287 | 2.2 | 2.3 | 7.3 | 2 957,15 |
| YE2-250M-4 | 55 | 104 | 1480 | 93.5 | 0.86 | 350 | 2.2 | 2.3 | 7.3 | 3 487,71 |
| YE2-280S-4 | 75 | 139 | 1485 | 94.0 | 0.87 | 478 | 2.2 | 2.3 | 6.8 | 4 434,26 |
| YE2-280M-4 | 90 | 165 | 1485 | 94.2 | 0.88 | 573 | 2.2 | 2.3 | 6.9 | 5 052,40 |
| YE2-315S-4 | 110 | 199 | 1485 | 94.5 | 0.89 | 700 | 2.1 | 2.2 | 6.9 | 8 137,99 |
| YE2-315M-4 | 132 | 238 | 1485 | 94.7 | 0.89 | 840 | 2.1 | 2.2 | 6.9 | 9 145,84 |
| YE2-315L1-4 | 160 | 285 | 1485 | 94.9 | 0.90 | 1019 | 2.1 | 2.2 | 6.9 | 10 508,67 |
| YE2-315L-4 | 185 | 328 | 1485 | 95.1 | 0.90 | 1178 | 2.1 | 2.2 | 6.9 | 11 509,92 |
| YE2-315L2-4 | 200 | 355 | 1485 | 95.1 | 0.90 | 1273 | 2.1 | 2.2 | 6.9 | 11 882,59 |
| YE2-355M1-4 | 220 | 391 | 1490 | 95.1 | 0.90 | 1401 | 2.0 | 2.2 | 6.8 | 16 337,28 |
| YE2-355M2-4 | 250 | 444 | 1490 | 95.1 | 0.90 | 1592 | 2.0 | 2.2 | 6.8 | 16 809,46 |
| YE2-355L1-4 | 280 | 497 | 1490 | 95.1 | 0.90 t | 1783 | 2.0 | 2.2 | 6.8 | 17 935,54 |
| YE2-355L2-4 | 315 | 559 | 1490 | 95.1 | 0.90 | 2006 | 2.0 | 2.2 | 6.8 | 18 839,03 |
| YE2-3551-4 | 355 | 637 | 1490 | 95.1 | 0.89 | 2260 | 1.7 | 2.2 | 6.5 | по запросу |
| YE2-3552-4 | 375 | 681 | 1490 | 95.1 | 0.88 1 | 2388 | 1.7 | 2.2 | 6.5 | |
| 6-ти полюсные. 1000 об/мин - 50 Гц | ||||||||||
| YE2-80M1-6 | 0,37 | 1.3 | 900 | 62.0 | 0.70 | 3.5 | 1.9 | 2.0 | 4.7 | 159,83 |
| YE2-80M2-6 | 0,55 | 1.8 | 900 | 65.0 | 0.72 | 5.3 | 1.9 | 2.1 | 4.7 | 175,88 |
| YE2-90S-6 | 0,75 | 2.1 | 940 | 75.9 | 0.71 | 7.2 | 2.0 | 2.1 | 5.8 | 210,47 |
| YE2-90L-6 | 1,1 | 3.0 | 940 | 78.1 | 0.72 | 10.5 | 2.0 | 2.1 | 5.9 | 243,75 |
| YE2-100L-6 | 1,5 | 4.0 | 950 | 79.8 | 0.72 | 14.3 | 2.0 | 2.1 | 5.9 | 314,21 |
| YE2-112M-6 | 2,2 | 5.7 | 955 | 81.8 | 0.72 | 21.0 | 2.0 | 2.1 | 6.2 | 393,14 |
| YE2-132S-6 | 3 | 7.6 | 970 | 83.3 | 0.72 | 28.7 | 2.0 | 2.1 | 6.4 | 521,67 |
| YE2-132M1-6 | 4 | 9.7 | 970 | 84.6 | 0.74 | 38.2 | 2.0 | 2.1 | 6.6 | 600,60 |
| YE2-132M2-6 | 5,5 | 13.0 | 970 | 86.0 | 0.75 | 52.5 | 2.0 | 2.1 | 6.8 | 676,52 |
| YE2-160M-6 | 7,5 | 16.8 | 975 | 87.2 | 0.78 | 71.6 | 2.0 | 2.1 | 6.8 | 949,39 |
| YE2-160L-6 | 11 | 23.9 | 975 | 88.7 | 0.79 | 105 | 2.0 | 2.1 | 6.9 | 1 147,97 |
| YE2-180L-6 | 15 | 31.0 | 980 | 89.7 | 0.82 | 143 | 2.0 | 2.1 | 7.3 | 1 492,44 |
| YE2-200L1-6 | 18,5 | 38.9 | 980 | 90.4 | 0.80 | 177 | 2.0 | 2.1 | 7.2 | 1 846,16 |
| YE2-200L2-6 | 22 | 45.4 | 980 | 90.9 | 0.81 | 210 | 2.0 | 2.1 | 7.3 | 1 998,92 |
| YE2-225M-6 | 30 | 60.6 | 985 | 91.7 | 0.82 | 287 | 2.0 | 2.1 | 6.8 | 2 618,52 |
| YE2-250M-6 | 37 | 73.5 | 985 | 92.2 | 0.83 | 353 | 2.0 | 2.1 | 7.0 | 3 197,70 |
| YE2-280S-6 | 45 | 86.8 | 990 | 92.7 | 0.85 | 430 | 2.0 | 2.0 | 7.2 | 3 973,45 |
| YE2-280M-6 | 55 | 104 | 990 | 93.1 | 0.86 | 525 | 2.0 | 2.0 | 7.2 | 4 535,72 |
| YE2-315S-6 | 75 | 145 | 990 | 93.7 | 0.84 | 716 | 2.0 | 2.0 | 6.5 | 8 188,19 |
| YE2-315M-6 | 90 | 171 | 990 | 94.0 | 0.85 | 860 | 2.0 | 2.0 | 6.6 | 9 052,43 |
| YE2-315L1-6 | 110 | 209 | 990 | 94.1 | 0.85 | 1051 | 2.0 | 2.0 | 6.6 | 10 313,52 |
| YE2-315L2-6 | 132 | 247 | 990 | 94.7 | 0.86 | 1261 | 2.0 | 2.0 | 6.6 | 11 276,85 |
| YE2-355M1-6 | 160 | 298 | 990 | 94.8 | 0.86 | 1528 | 2.0 | 2.0 | 6.7 | 15 509,68 |
| YE2-355M2-6 | 185 | 344 | 990 | 94.9 | 0.86 | 1767 | 2.0 | 2.0 | 6.7 | 16 111,03 |
| YE2-355M3-6 | 200 | 372 | 990 | 95.0 | 0.86 | 1910 | 2.0 | 2.0 | 6.8 | 16 840,18 |
| YE2-355L1-6 | 220 | 409 | 990 | 95.0 | 0.86 | 2101 | 2.0 | 2.0 | 6.8 | 17 820,76 |
| YE2-355L2-6 | 250 | 465 | 990 | 95.0 | 0.86 | 2388 | 2.0 | 2.0 | 6.8 | 20 861,30 |
| YE2-355L4-6 | 280 | 492 | 990 | 95.0 | 0.91 | 2674 | 2.0 | 2.0 | 6.8 | 29 317,20 |
| YE2-3552-6 | 315 | 586 | 990 | 95.0 | 0.86 | 3008 | 2.0 | 2.0 | 6.8 | 29 915,51 |
| YE2-3553-6 | 355 | 660 | 990 | 95.0 | 0.86 | 3390 | 2.0 | 2.0 | 6.8 | по запросу |
| 8-ми полюсные. 750 об/мин - 50 Гц | ||||||||||
| YE2-132S-8 | 2,2 | 6.0 | 705 | 77.6 | 0.71 | 28.0 | 1.8 | 2.0 | 6.0 | 552,49 |
| YE2-132M-8 | 3 | 7.9 | 705 | 80.0 | 0.73 | 38.2 | 1.8 | 2.0 | 6.0 | 631,28 |
| YE2-160M1-8 | 4 | 10.3 | 720 | 81.9 | 0.73 | 50.9 | 1.9 | 2.0 | 6.0 | 848,66 |
| YE2-160M2-8 | 5,5 | 13.6 | 720 | 83.8 | 0.74 | 70.0 | 2.0 | 2.0 | 6.0 | 932,85 |
| YE2-160L-8 | 7,5 | 17.8 | 720 | 85.3 | 0.75 | 95.5 | 2.0 | 2.0 | 6.6 | 1 092,51 |
| YE2-180L-8 | 11 | 25.1 | 730 | 86.9 | 0.76 | 140 | 2.0 | 2.0 | 6.6 | 1 462,79 |
| YE2-200L-8 | 15 | 34.1 | 730 | 88.0 | 0.76 | 191 | 2.0 | 2.0 | 6.6 | 2 086,86 |
| YE2-225S-8 | 18,5 | 41.1 | 730 | 88.6 | 0.76 | 236 | 1.9 | 2.0 | 6.6 | 2 346,79 |
| YE2-225M-8 | 22 | 47.4 | 730 | 89.1 | 0.78 | 280 | 1.9 | 2.0 | 6.6 | 2 547,73 |
| YE2-250M-8 | 30 | 63.4 | 730 | 89.8 | 0.79 | 382 | 1.9 | 2.0 | 6.6 | 3 408,16 |
| YE2-280S-8 | 37 | 77.8 | 730 | 90.3 | 0.81 | 471 | 1.9 | 2.0 | 6.6 | 4 299,98 |
| YE2-280M-8 | 45 | 94.1 | 740 | 90.7 | 0.81 | 573 | 1.9 | 2.0 | 6.6 | 4 834,19 |
| YE2-315S-8 | 55 | 113 | 740 | 91.0 | 0.82 | 700 | 2.0 | 2.0 | 6.6 | 7 572,55 |
| YE2-315M-8 | 75 | 154 | 740 | 91.6 | 0.82 | 955 | 2.0 | 2.0 | 6.6 | 8 937,12 |
| YE2-315L1-8 | 90 | 182 | 740 | 91.9 | 0.82 | 1146 | 2.0 | 2.0 | 6.6 | 10 126,81 |
| YE2-315L2-8 | 110 | 221 | 740 | 92.3 | 0.82 | 1401 | 2.0 | 2.0 | 6.6 | 11 094,24 |
| YE2-355M1-8 | 132 | 264 | 740 | 92.6 | 0.82 | 1681 | 2.0 | 2.0 | 6.6 | 14 688,83 |
| YE2-355M2-8 | 160 | 319 | 740 | 93.0 | 0.82 | 2037 | 2.0 | 2.0 | 6.7 | 17 488,90 |
| YE2-355L-8 | 200 | 392 | 740 | 93.5 | 0.83 | 2547 | 2.0 | 2.0 | 6.8 | 18 802,85 |
| YE2-3551-8 | 220 | 431 | 740 | 93.5 | 0.83 | 2801 | 2.0 | 2.0 | 6.8 | по запросу |
| YE2-3552-8 | 250 | 490 | 740 | 93.5 | 0.83 | 3183 | 2.0 | 2.0 | 6.8 | |
| 10-ти полюсные. 600 об/мин - 50 Гц | ||||||||||
| YE2-315S-10 | 45 | 101 | 594 | 90.2 | 0.75 | 716 | 2.0 | 2.0 | 7.2 | 7 900,29 |
| YE2-315M-10 | 55 | 123 | 594 | 90.5 | 0.75 | 875 | 2.0 | 2.0 | 7.2 | 8 677,54 |
| YE2-315L1-10 | 75 | 165 | 594 | 91.1 | 0.76 | 1194 | 2.0 | 2.0 | 6.5 | 11 797,20 |
| YE2-315L2-10 | 90 | 194 | 594 | 91.4 | 0.77 | 1433 | 2.0 | 2.0 | 6.6 | по запросу |
| YE2-355M1-10 | 110 | 233 | 590 | 91.8 | 0.78 | 1751 | 2.0 | 2.0 | 6.6 | |
| YE2-355M2-10 | 132 | 279 | 590 | 92.1 | 0.78 | 2101 | 2.0 | 2.0 | 6.6 | |
| YE2-355L-10 | 160 | 337 | 590 | 92.5 | 0.78 | 2547 | 2.0 | 2.0 | 6.7 | |
| YE2-3551-10 | 185 | 390 | 590 | 92.5 | 0.78 | 2945 | 2.0 | 2.0 | 6.7 | |
| YE2-3552-10 | 200 | 421 | 590 | 92.5 | 0.78 | 3183 | 2.0 | 2.0 | 6.8 | |
Общая информация:
Трёхфазные асинхронные электродвигатели мощностью до 1000 кВт собственного производства с вертикальным и горизонтальным расположением вала. Все модели с возможностью частотного регулирования, соответствуют классам энергоэффективности IE2 и IE3 и степени защиты IP23, 54 и 55. От 590 до 3000 об/мин.
Асинхронные двигатели нашли широчайшее применение практически во всех сферах жизнедеятельности человека. Такая популярность обусловлена простотой конструкции и, как следствие, долгим сроком службы. Широкий модельный ряд электродвигателей Aikon обеспечивают универсальность их применения.
Основные характеристики
- Номинальная мощность: 0,55 - 1000 кВт;
- Количество полюсов: 2, 4, 6, 8, 10;
- Напряжение: 50 - 1000 В;
- Частота: 50 Гц, 60 Гц;
- Энергоэффективность: IE2, IE3;
- Типоразмер: Н363-Н560;
- Степень защиты: IP54, IP55;
- Класс изоляции: F, H;
- Температура окружающей среды: -15...+40°С
- Тип конструкции: B3, B35, V1, V18 и другие.

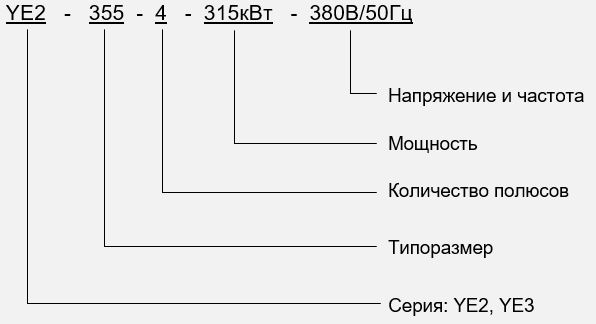

Обозначение
Способ охлаждения
Низковольтные электродвигатели серий YE2 и YE3 (IC411) - защищённые электродвигатели с самовентиляцией и рёбрами охлаждения. Циркуляция осуществляется с помощью внешнего вентилятора, который расположен на валу электродвигателя.
